SPAL Fan Pictures


Here are a few pictures of my dual SPAL fans. The fans are mounted on an FMS 2 core aluminum radiator, using homemade brackets manufactured from 3/4" x 3/16" thick bar stock.

All the images below are thumbnails. Clicking on them will bring up the bigger images.

Fans

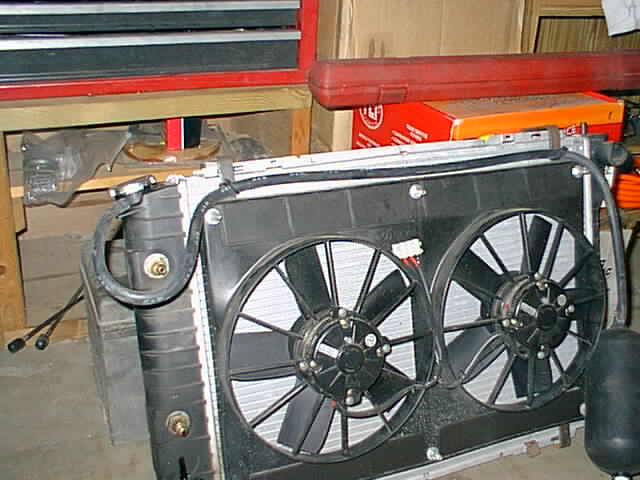

 		Here is a picture of the whole works.
Fans
 		The fans are 4.25" thick at the motors and 2.75" thick inbetween the motors. The space inbetween is approx 6" wide.
Bracket
 		Here is a top view of the bracket.
Bracket
 		This is what it looks like from the bottom.
